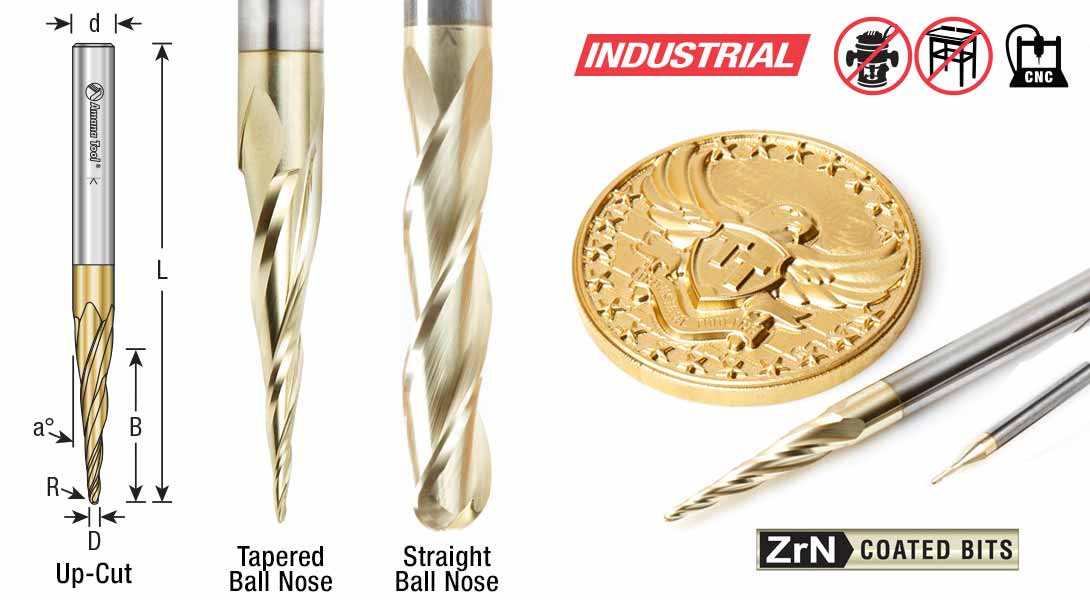

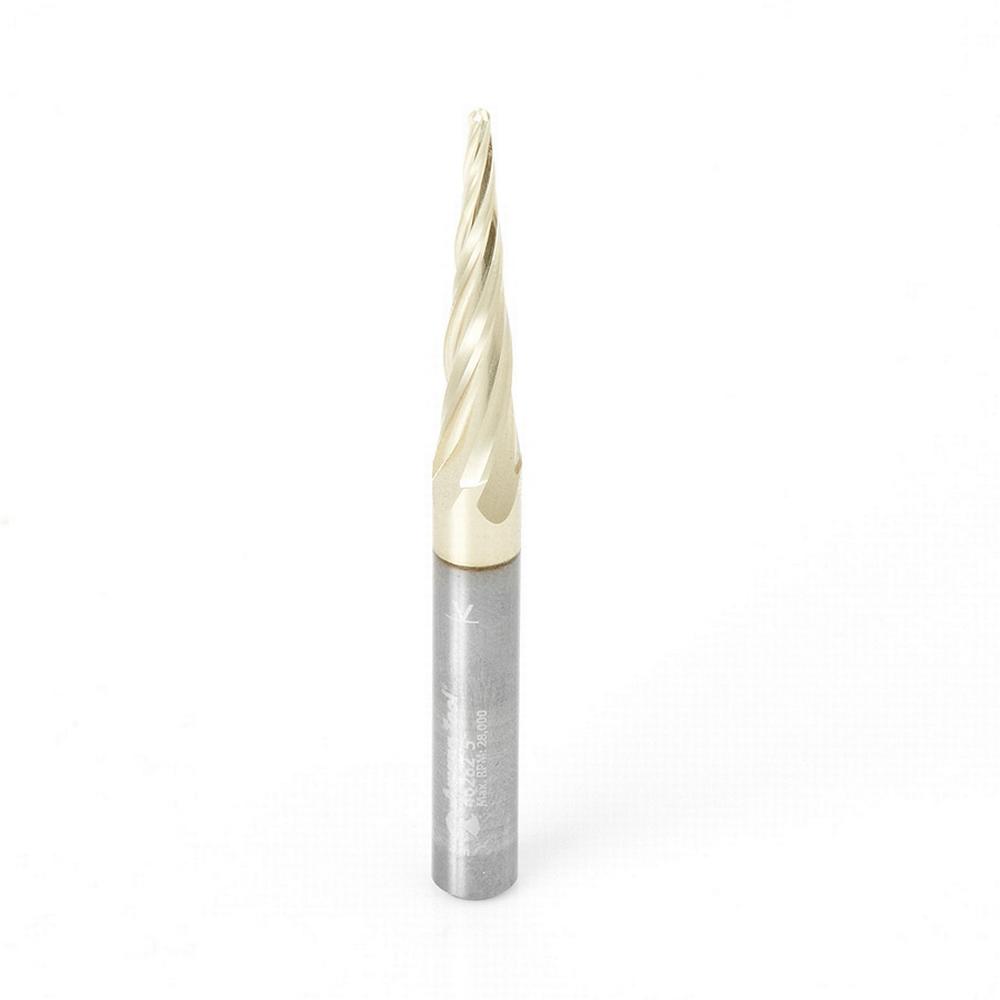

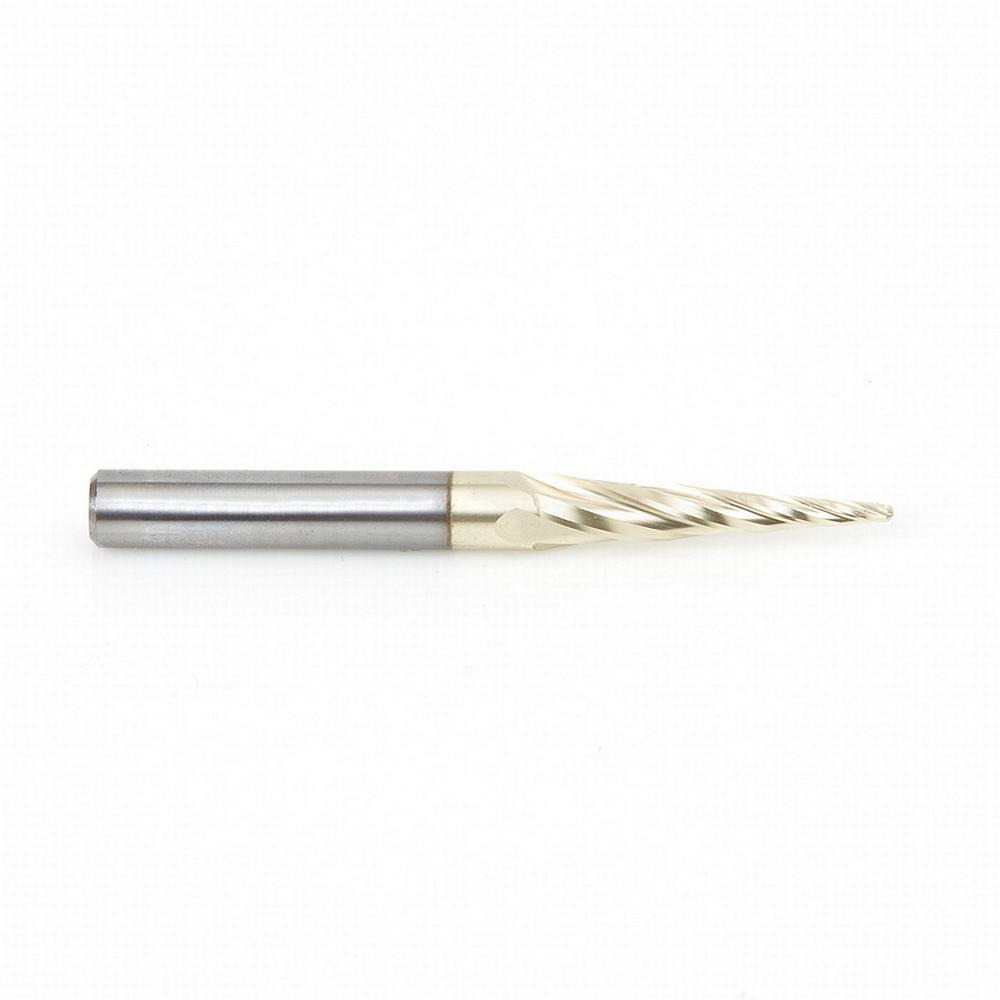

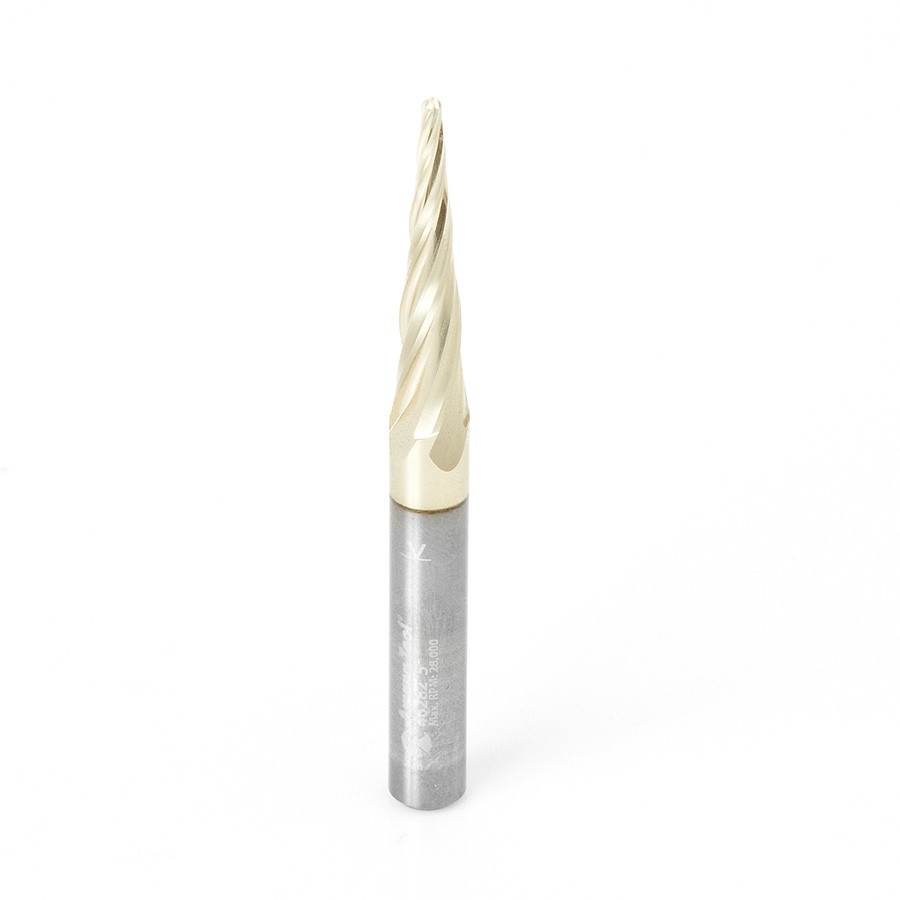

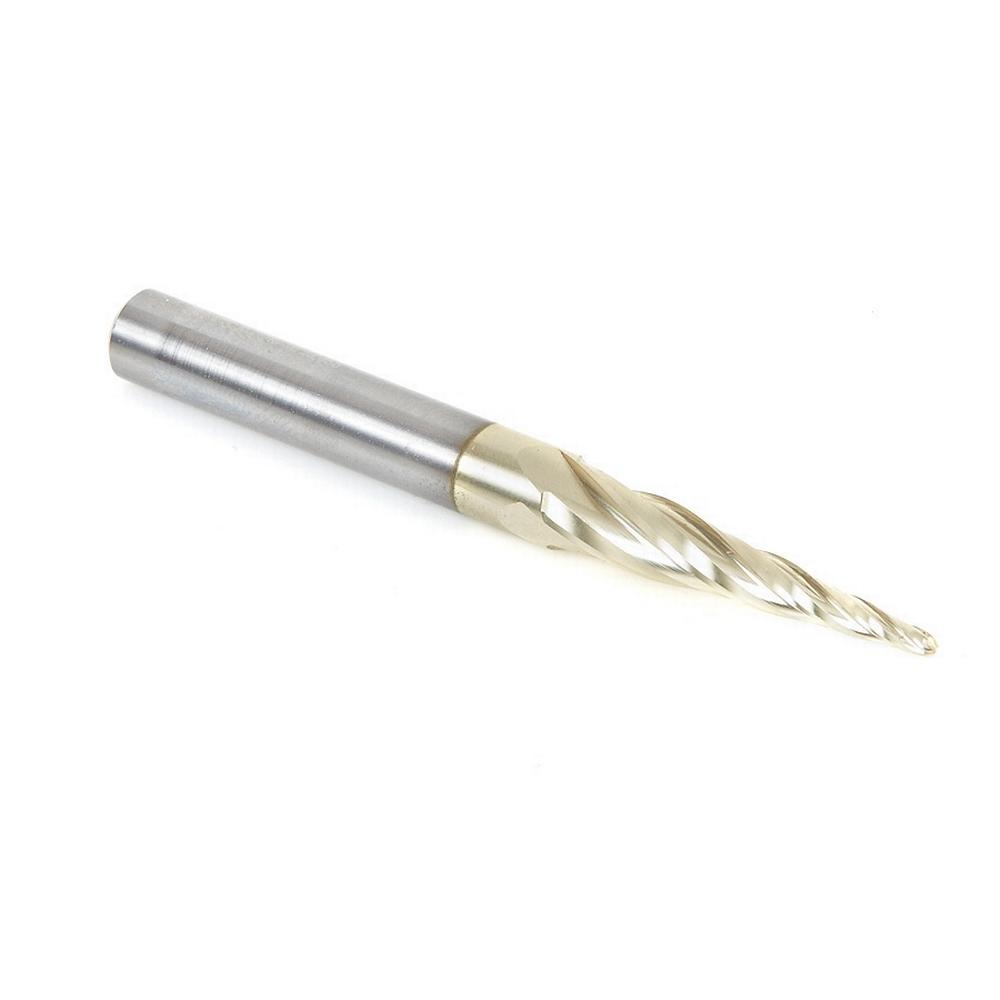

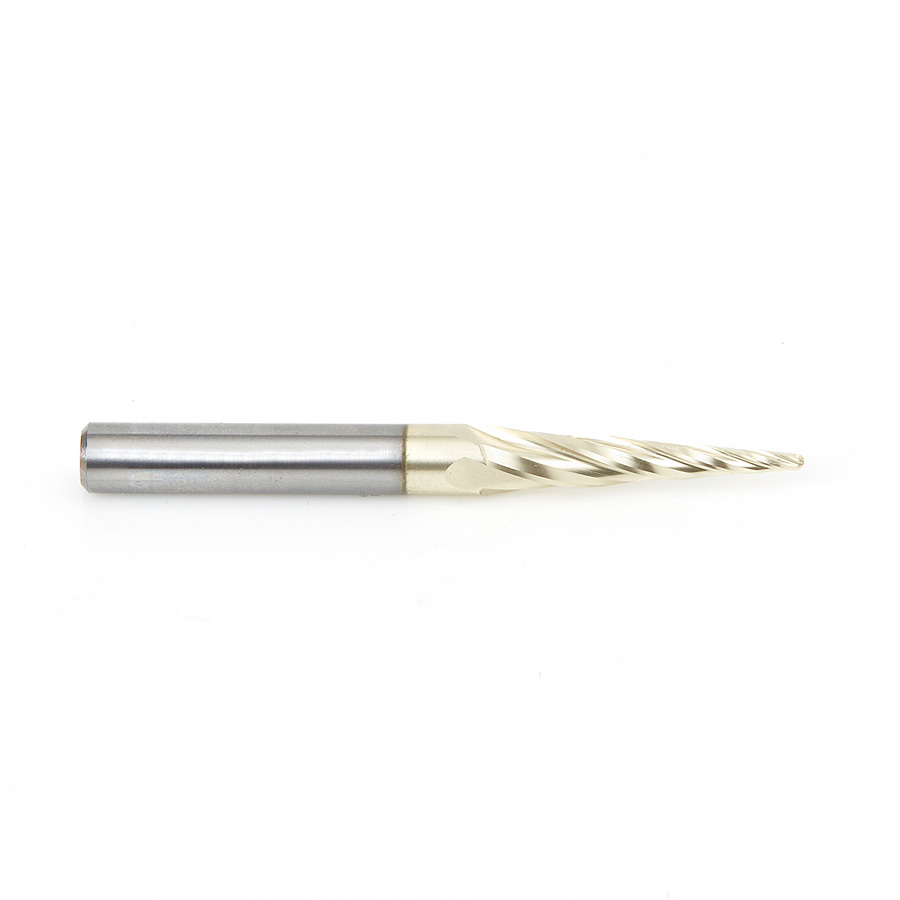

Amana Tool 46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Nose x 1/16 D x 1/32 R x 1 CH x 1/4 SHK x 3 Inch Long x 4 Flute SC ZrN Coated Upcut Router Bit

  • SKU: 46282
Availability: In Stock
$68.40
$51.30


Applications:

  • A perfect bit for 3D carving
  • Precision 2D and 3D large scale carving
  • Great for deep profiling
  • Dimensional signage
  • 3D millwork
  • 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
  • Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials

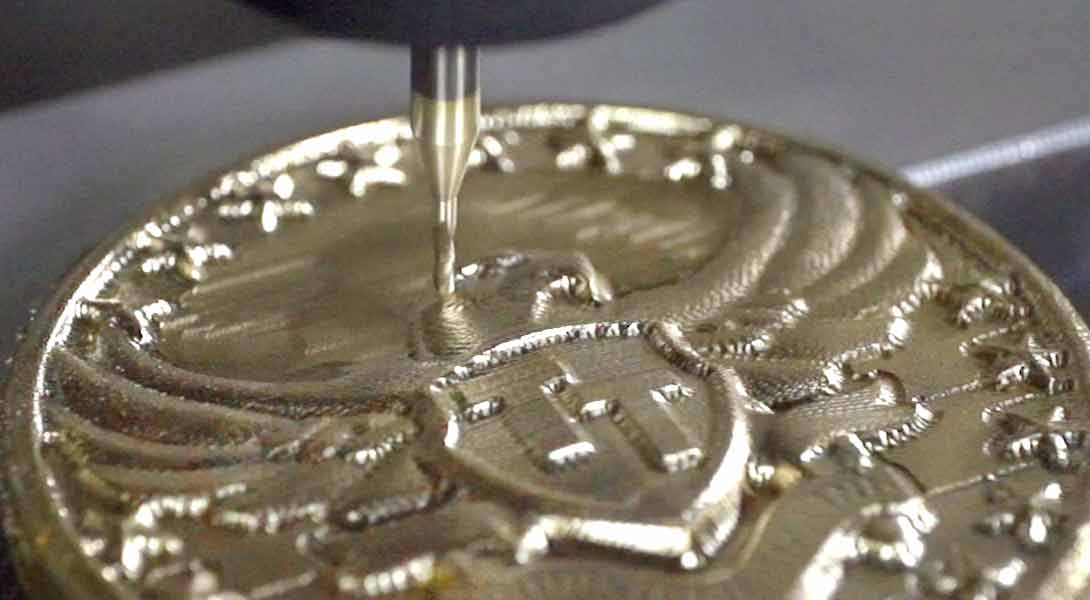

The industrial router bits can be used in sign making & 3D Carving industries in MDF, Plastics, Bronze, Copper, Foam, Wood and other materials. The simultaneous 3-axis motion with the appropriate software allows full 3D capability that provides sign and 3D model makers the ability to work with any material.


The solid carbide tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup.


The tapered design achieves high detail in deep cuts, improving the complexity and the detail of your finished work. The longer bits provide deeper cuts and larger slices with fewer passes, resulting in improved productivity and less assembly. These router bits are designed to last, saving you the costs of replacing lesser quality tools. These CNC cutting tools allow you to achieve precision, depth, unparalleled accuracy, detail and clarity in foam and other modern-day materials.

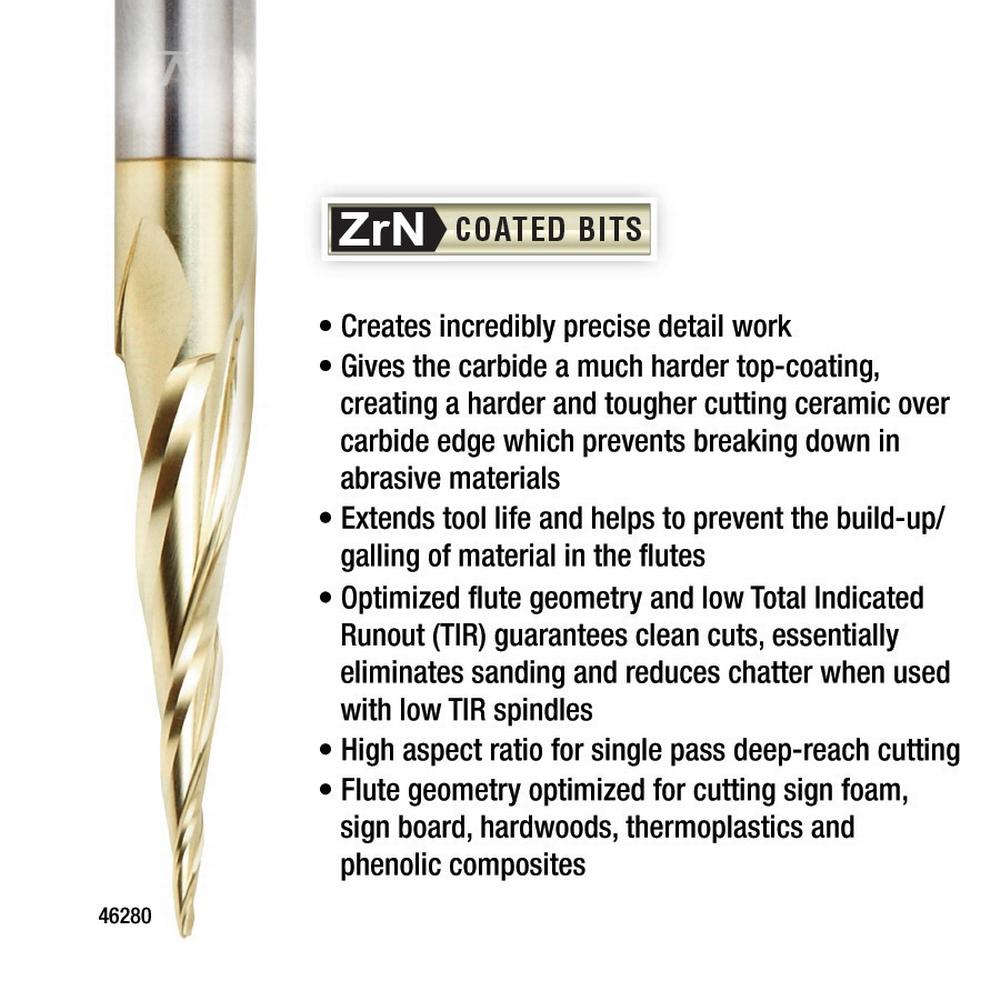

Benefits of Zirconium Nitride (ZrN) Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting
  • Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

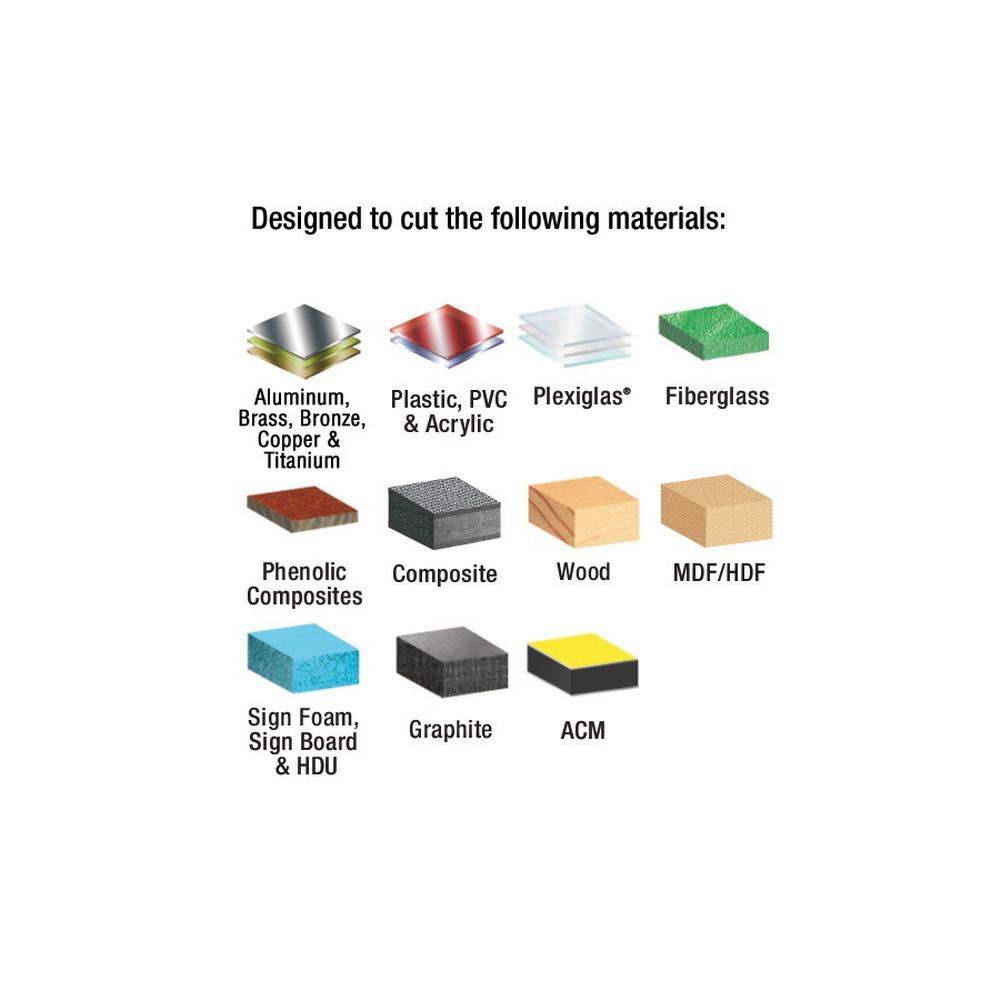

Excellent for cutting:

  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Acrylic
  • Acrylic Stone
  • Aluminum
  • Brass
  • Bronze
  • Composite
  • Copper
  • Corian
  • Coroplast®*
  • Dibond®
  • Ethafoam***
  • Ethylene-vinyl Acetate Foam (EVA)
  • Expanded Polypropylene (EPP)**
  • Expanded Polystyrene Foam (EPS)
  • Extruded Polystyrene Foam (XPS)
  • Fiberglass
  • Fiberglass PCB Board
  • Foam Board
  • Graphite
  • High Density Polyethylene (HDPE)
  • High Density Urethane (HDU)
  • 20lbs High Density Urethane
  • Lexan™
  • MDF/HDF
  • Non-Ferrous Metals
  • PALFOAM™
  • Phenolics
  • Phenolic Composites
  • Plastics
  • Poly (methyl methacrylate) (PMMA)
  • Polyethylene Foam***
  • Polylam***
  • Polyurethane Foam
  • PVC
  • PVC Foam Board
  • Sign Board
  • Sign Foam
  • Titanium
  • Tooling Board
  • Wood
  • XPE (Cross Linked Polyethylene) Foam
*A soft plastic cardboard made with super soft, super flexible PVC.
**Expanded polypropylene (EPP) is a foam form of polypropylene.
***Ethafoam, Polyethylene, and Polylam are durable, flexible, closed-cell foams with excellent memory.

Milling Plastics:
In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control. Some of Amana Tool carving tools, as you can appreciate has a very small diameter and so any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome. Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.


Cutting materials such as HDPE and Plastics its highly recommended to direct an air blast at the router bit to help keep the material cool while clearing away fragments from the cutting area. If possible run a high chip load in the order of .005" and up, per flute. Running your CNC machine at the rate of 10,000 RPM x 2 flutes x .005" per flute equals 100 inches per minute feed rate. When cutting plastics it is expected to experience some burring on top edge.


saw blade guidelines for safetyWARNING! Never attempt to cut ferrous metals with these bits. Inspect cut quality and adjust feed / speed accordingly
